Onboard CD Manual for MIB2 High (All Audi Cars)

Some guy from the D2 found an ISO image for the A3 model, so I decided to go further and collect CDs for all Audi cars equipped with MIB2 High. Manuals were rereleased every 6 months in Europe but were never available in the US. ETKA doesn’t have part numbers too. I clearly see a pattern in the numbers but didn’t find half of them (yet). At the moment, I was able to download images for eight models and reuploaded them to MEGA folder.

8V2 012 788 QD – Audi A3, released 05.2017
8W0 012 788 QF – Audi A4, released 05.2017
8W6 012 788 QF – Audi A5, released 11.2017
80A 012 788 QC – Audi Q5, released 11.2016
4M0 012 788 QE – Audi Q7, released 05.2017
8S0 012 788 QF – Audi TT Coupe, released 09.2017
8S7 012 788 QD – Audi TT Roadster, released 11.2016
162 565 4S0 88 – Audi R8 Coupe, released 07.2015

There are mentions of these (newer) CDs in the web:

8V2 012 788 QE – Audi A3, released 11.2017
8V2 012 788 QH – Audi A3, released 11.2018
8W0 012 788 QG – Audi A4, released 09.2017
8W0 012 788 QH – Audi A4, released 11.2017
4G0 012 788 QB – Audi A6, released 05.2016
4G0 012 788 QE – Audi A6, released 11.2017
4G8 012 788 QC – Audi A7, released 11.2016
4H0 012 788 QA – Audi A8, released 11.2014
81A 012 788 QE – Audi Q2, released 07.2018
80A 012 788 QJ – Audi Q5, released 08.2019
4M0 012 788 QK – Audi Q7, released 07.2019

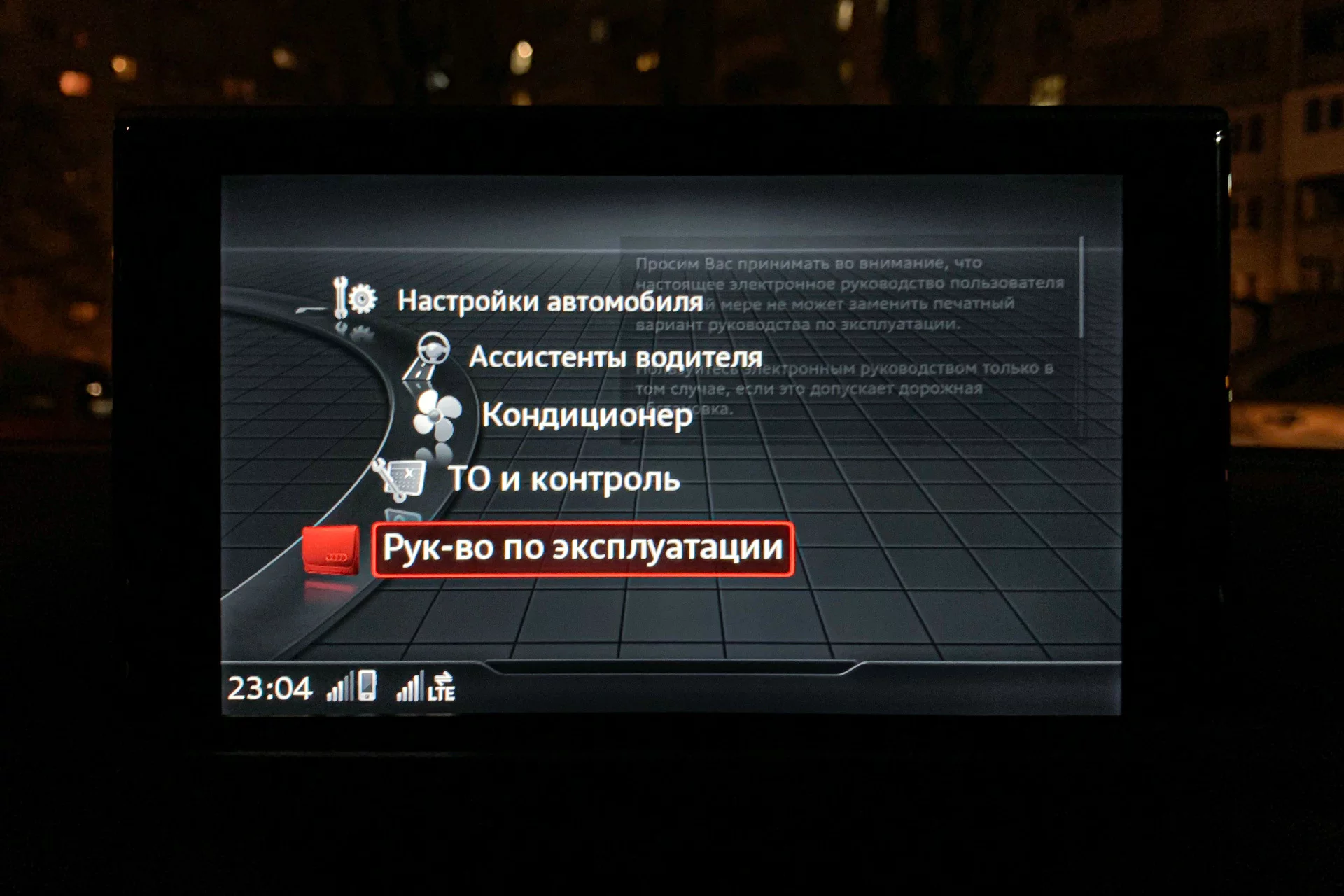

The menu item should be activated in MIB2 coding (it was active and empty by default, but I disabled it previously):

Byte 19 Bit 0 — Owners manual

UltraISO is not necessary. Just extract the contents to the root of a flash drive or SD card. MIB2 recognizes drives formatted in FAT32 and NTFS.

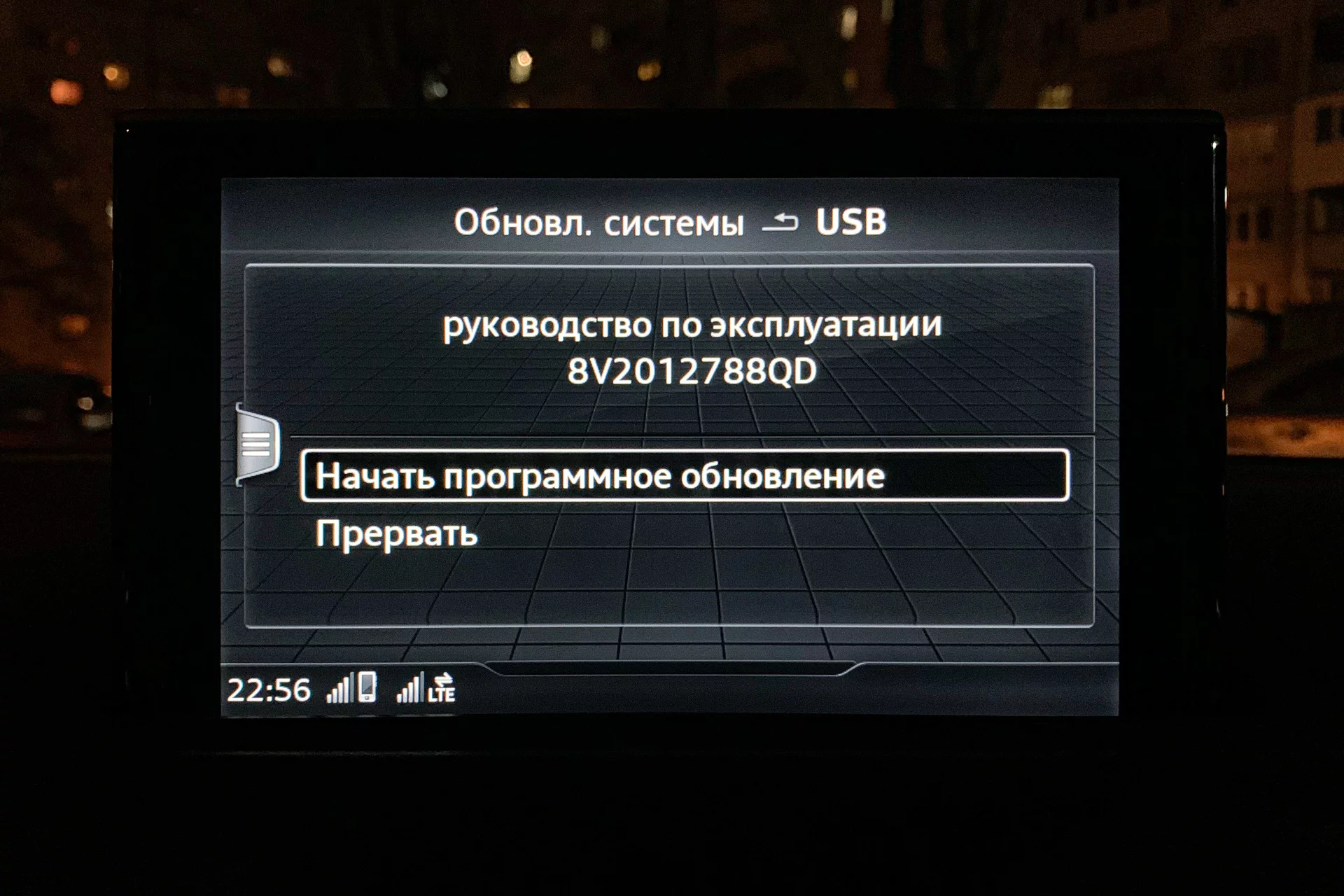

Main screen ⟶ Settings ⟶ [left wing] ⟶ System maintenance ⟶ System update


⚠️WARNING: I have edited this post many times already. The only manual left to find is an Audi Q2, please share if you have it.
